PinHacks Tron Mini-Arcade Cabinet Materials

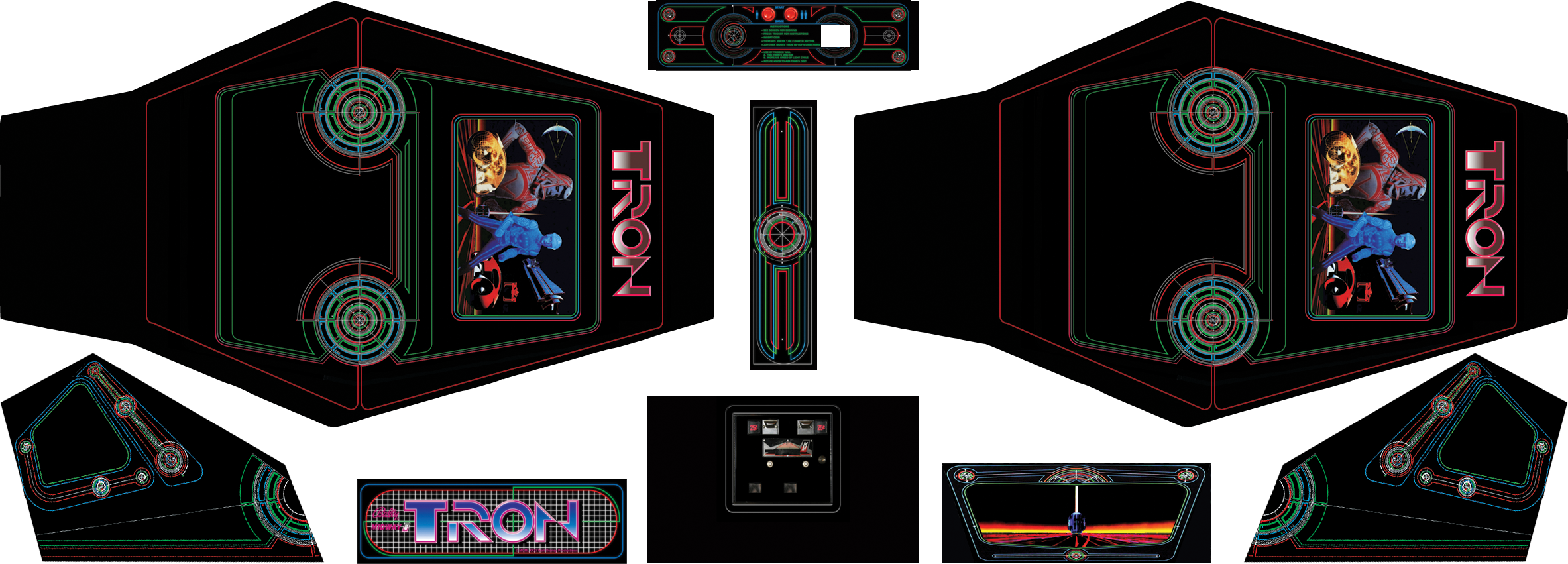

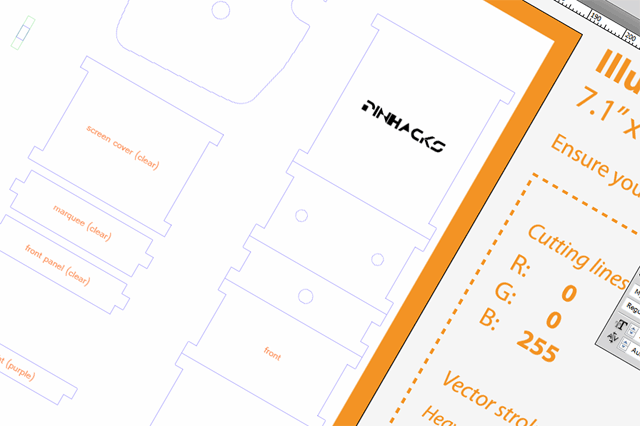

So you'd like to build your own? Great! Here is what you'll need. Adobe Illustrator EPS laser cut designs Licensed under a Creative Commons Attribution 3.0 Unported License. The EPS files were made for cutting at Ponoko.com, and are ready to upload. You'll need to cut on four different materials: Joystick: Acrylic - Fluoro Blue (3mm) Blacklight: Acrylic - Purple (3mm) Clear plastics: Acrylic - Clear (2mm) Everything else: Delrin - Black (2.33mm) uOLED-128 G1 OLED screen (note: This screen has entered an end of life phase. The replacement "G2" model will require some changes to the laser cut. You are free to make these. :) USB to Serial TTL Cable (to program the screen) 4D Workshop3 IDE Attract mode source code w/flipped code (screen is installed upside down) 300dpi cabinet decal graphic Vinyl decal paper 24-Gauge 2-Conductor wire (power & flasher wiring harnesses) 28-Gauge 2-Conductor Flat Mini Wire (interior LED lighting) .093 6-pin Molex plug .093 Molex male pins (2) .062 2-pin Molex receptacle .062 2-pin Molex plug .062 Molex female pins (2) .062 Molex male pins (2) 16-02-0103 Molex female pins (4) 5 Position 2.54mm Molex housing (2) Heat shrink tubing Threaded mountning brackets (2) 617K-ND Mounting bracket A31240-ND 2POS 24AWG IDC female connector #077-5029-00 socket (#555/#906 Wedge Base Offest - Wms/Bly/Stern) 4-40 x 1/4 lock screw (4) 6-32 x 3/8" screw 6-32 NM 18-8 Stainless Steel Nylon Insert Lock Nut 4-40 x 3/8 screw Locknut, Nylon Insert, 4-40 906 COOL WHITE Cointaker LED 3mm Round UV led light 5mm straw hat white LED (2) Pinbits 0.156" IDC Pusher Soldering iron Wire Crimper Heat Gun

Finally, here is an hour long assembly video I posted to YouTube.
